Clutch Simulator (Firewall/Pedalbox Mount) – For DCT Setups That Miss Having Three Pedals…
Description
Clutch Simulator (Firewall/Pedalbox Mount) – For DCT Setups That Miss Having Three Pedals
Your DCT doesn’t need a clutch pedal. Your gearbox controller, however, might want one. This hydraulic clutch simulator gives your transmission controller the clutch position signal it needs for launch control, anti-lag, or any other clutch-dependent logic.

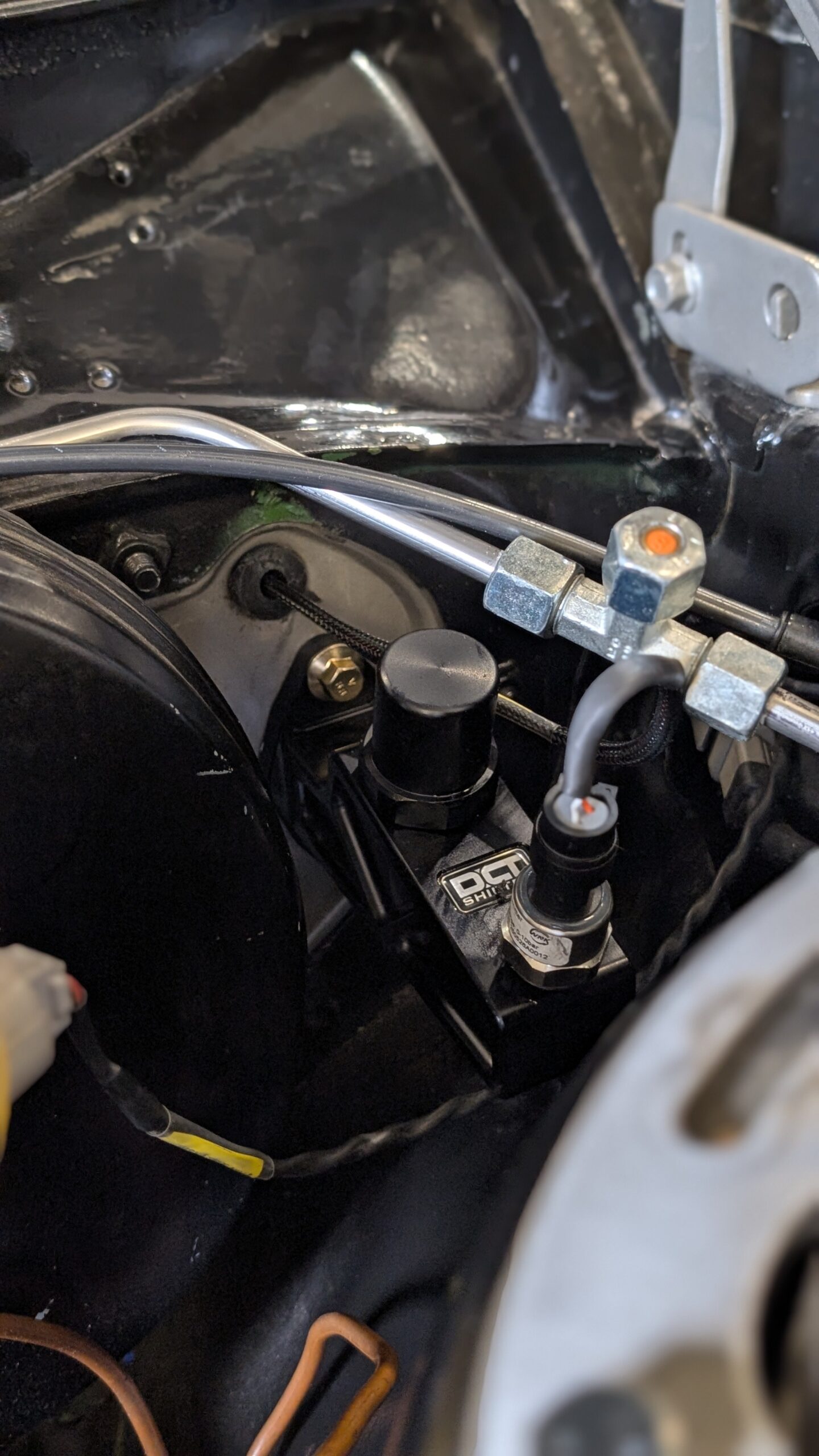

**Firewall/pedal mounting**: Bolts directly to your firewall with the included M8 rod and clevis link. Fits most firewalls with 62-53mm centre-to-centre spacing.
Built-in 5v analog clutch position sensor (optional):
– 0.5-4.5v output range
– 0-10 bar pressure range
– 1/8 NPT thread
Important calibration tip: Heat from the engine bay causes slight voltage drift (~0.1v at 80°C). When calibrating, leave headroom from your zero point. If the sensor reads 0.5v at rest, set your controller’s 0% threshold to at least 0.8-1.0v.
Works with: Turbo Lamik, MaxxECU, and most transmission controllers that support clutch-based control logic
Specs:
– Inlet: 3/8-24 UNF female
– Body: 85mm tall (110mm total with firewall bracket)
– Width: 35mm
– Length: 160mm total (125mm from firewall to body end)
– Weight: 0.8kg
– Material: Anodized aluminium
Made in Sweden. Solves a specific problem. Does it well.
Additional information
| Clutch position sensor | Yes, No |
|---|
